Project Description

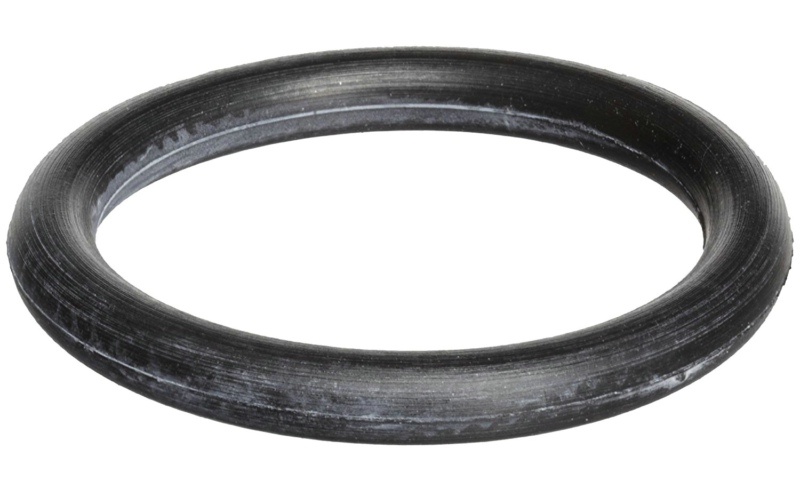

EPDM O-ring are resistant to water, ozone, and ageing, and therefore ideal for exposed application, such as low pressure pipe seals and weather strips, etc.
Photo Gallery
Specifications & Available Size
- Color: various are available
- Hardness: 70+/-5 Shore A
- Molded or extrude: Molded
- Temperature Range: -20 -250 °C
- Tensile Strength: 23-37.5 Mpa
- Elongation at break: 125-250%
- Density: 1.5g/cm3
- Size: Customized
| Cross-Sectional Diameter (D2 mm) | Inner Diameter (D1 mm) | Maximum Inner Diameter (D1 mm) |
|---|---|---|
| 1.8 | ≥2 | 200 |
| 2.0 | ≥3 | 250 |
| 2.4 | ≥4 | 250 |
| 2.5 | ≥4 | 250 |
| 2.62 | ≥4 | 350 |
| 2.65 | ≥4 | 350 |
| 3 | ≥5 | 350 |
| 3.1 | ≥6 | 350 |
| 3.3 | ≥6 | 350 |
| 3.5 | ≥6 | 350 |
| 3.6 | ≥6 | 350 |
| 3.8 | ≥6 | 500 |
| 4 | ≥12 | 600 |
| 4.1 | ≥12 | 600 |
| 4.3 | ≥12 | 600 |
| 4.5 | ≥20 | 600 |
| 4.7 | ≥20 | 800 |
| 5 | ≥20 | 800 |
| 5.3 | ≥20 | 800 |
| 5.5 | ≥20 | 800 |
| 5.7 | ≥20 | 800 |
| 6 | ≥20 | 800 |
| 6.3 | ≥20 | 800 |
| 6.7 | ≥25 | 800 |
| 7 | ≥30 | 800 |
| 7.3 | ≥30 | 800 |
| 8 | ≥50 | 800 |
| 8.4 | ≥50 | 800 |
| 8.6 | ≥50 | 800 |
| 9 | ≥50 | 800 |
| 10 | ≥60 | 800 |
| 12 | ≥80 | 800 |
| 14 | ≥50 | 800 |
| 16 | ≥50 | 800 |
| 20 | ≥200 | 800 |
| 25 | ≥200 | 800 |
Packing Details
Carton or based on your requirements.
