Project Description

PTFE Rod is an extremely versatile engineering plastic that has many important performance advantages over other materials. PTFE Rod has became one of the most important engineering materials available at the moment.

In particular, PTFE Rod has fantastic chemical resistance and superb electrical insulation properties. Furthermore, it operates effectively at extremely high and low temperatures.

Regular Specifications

  • Temperature Range: -250 -250 °C

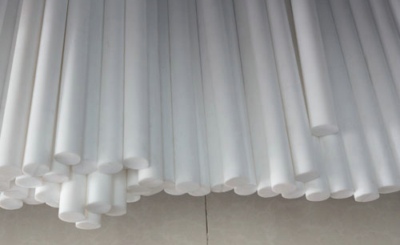

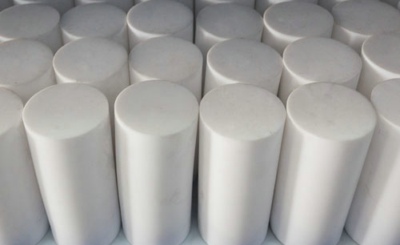

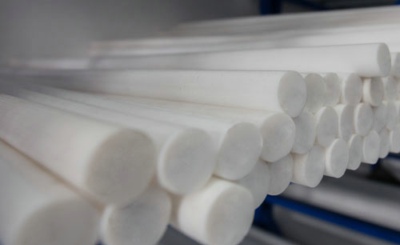

  • Processing method: molded and extruded; Carbon, graphite can be filled
  • Size: customized
  • Others:
    TypesDiameter(mm)Length(mm)
    nominalToleranceNominalTolerance
    SFFBN4,5,6+0.48 01000+5.0
    7,8,9+0.58 0
    SF×BN10,13,15 16,18+1.10 01000+3.60
    20,25,30+1.30 0
    35,40,45 50+1.60 0
    55,60,65,70,75 80,85,90,100+2.00 01000+2.50
    110,120,130 140,150+2.50 0
    180,200,250 270,300+3.0 0300

Packing Details

Plastic bags in inner and outer carton or other packing method based on your requirements.
